更多形态学变换

目标

Section titled “目标”

在本教程中，你将学到：

  • 如何使用 OpenCV 函数 cv::morphologyEx 来应用形态学变换（Morphological Transformation），例如：
    • 开运算（Opening）
    • 闭运算（Closing）
    • 形态学梯度（Morphological Gradient）
    • 顶帽（Top Hat）
    • 黑帽（Black Hat）

原理

Section titled “原理”

在上一篇教程中，我们介绍了两种基本的形态学操作：

  • 腐蚀（Erosion）
  • 膨胀（Dilation）

基于这两种操作，我们可以对图像执行更复杂的变换。下面我们简要讨论 OpenCV 提供的 5 种操作：

开运算

Section titled “开运算”

  • 它通过对图像先腐蚀、再膨胀得到：

    dst=open(src,element)=dilate(erode(src,element))dst = open( src, element) = dilate( erode( src, element ) )

  • 可用于移除小的物体（假设物体在暗背景上是亮的）。

  • 例如，看看下面的例子。左图是原图，右图是应用开运算后的结果。可以观察到小点已经消失了。

闭运算

Section titled “闭运算”


  • 它通过对图像先膨胀、再腐蚀得到：

    dst=close(src,element)=erode(dilate(src,element))dst = close( src, element ) = erode( dilate( src, element ) )

  • 可用于移除小孔（暗区域）。

形态学梯度

Section titled “形态学梯度”


  • 它是图像膨胀与腐蚀之间的差：

    dst=morphgrad(src,element)=dilate(src,element)−erode(src,element)dst = morph_{grad}( src, element ) = dilate( src, element ) - erode( src, element )

  • 可用于寻找物体的轮廓。

顶帽

Section titled “顶帽”


  • 它是输入图像与其开运算结果之间的差：

    dst=tophat(src,element)=src−open(src,element)dst = tophat( src, element ) = src - open( src, element )

黑帽

Section titled “黑帽”


  • 它是输入图像的闭运算结果与输入图像之间的差：

    dst=blackhat(src,element)=close(src,element)−srcdst = blackhat( src, element ) = close( src, element ) - src

代码

Section titled “代码”

C++：

本教程的代码如下所示。你也可以从 这里 下载。

/**
 * @file Morphology_2.cpp
 * @brief Advanced morphology Transformations sample code
 * @author OpenCV team
 */


#include "opencv2/imgproc.hpp"
#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include <iostream>


using namespace cv;


/// Global variables
Mat src, dst;


int morph_elem = 0;
int morph_size = 0;
int morph_operator = 0;
int const max_operator = 4;
int const max_elem = 3;
int const max_kernel_size = 21;


const char* window_name = "Morphology Transformations Demo";




/** Function Headers */
void Morphology_Operations( int, void* );


/**
 * @function main
 */
int main( int argc, char** argv )
{
  CommandLineParser parser( argc, argv, "{@input | baboon.jpg | input image}" );
  src = imread( samples::findFile( parser.get<String>( "@input" ) ), IMREAD_COLOR );
  if (src.empty())
  {
    std::cout << "Could not open or find the image!\n" << std::endl;
    std::cout << "Usage: " << argv[0] << " <Input image>" << std::endl;
    return EXIT_FAILURE;
  }


  namedWindow( window_name, WINDOW_AUTOSIZE ); // Create window


  /// Create Trackbar to select Morphology operation
  createTrackbar("Operator:\n 0: Opening - 1: Closing  \n 2: Gradient - 3: Top Hat \n 4: Black Hat", window_name, &morph_operator, max_operator, Morphology_Operations );


  /// Create Trackbar to select kernel type
  createTrackbar( "Element:\n 0: Rect - 1: Cross - 2: Ellipse - 3: Diamond", window_name,
                  &morph_elem, max_elem,
                  Morphology_Operations );


  /// Create Trackbar to choose kernel size
  createTrackbar( "Kernel size:\n 2n +1", window_name,
                  &morph_size, max_kernel_size,
                  Morphology_Operations );


  /// Default start
  Morphology_Operations( 0, 0 );


  waitKey(0);
  return 0;
}


/**
 * @function Morphology_Operations
 */
void Morphology_Operations( int, void* )
{
  // Since MORPH_X : 2,3,4,5 and 6
  int operation = morph_operator + 2;


  Mat element = getStructuringElement( morph_elem, Size( 2*morph_size + 1, 2*morph_size+1 ), Point( morph_size, morph_size ) );


  /// Apply the specified morphology operation
  morphologyEx( src, dst, operation, element );
  imshow( window_name, dst );
}

Java：

本教程的代码如下所示。你也可以从 这里 下载。

import java.awt.BorderLayout;
import java.awt.Container;
import java.awt.Image;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;


import javax.swing.BoxLayout;
import javax.swing.ImageIcon;
import javax.swing.JComboBox;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JSlider;
import javax.swing.event.ChangeEvent;
import javax.swing.event.ChangeListener;


import org.opencv.core.Core;
import org.opencv.core.Mat;
import org.opencv.core.Point;
import org.opencv.core.Size;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;


public class MorphologyDemo2 {
    private static final String[] MORPH_OP = { "Opening", "Closing", "Gradient", "Top Hat", "Black Hat" };
    private static final int[] MORPH_OP_TYPE = { Imgproc.MORPH_OPEN, Imgproc.MORPH_CLOSE,
            Imgproc.MORPH_GRADIENT, Imgproc.MORPH_TOPHAT, Imgproc.MORPH_BLACKHAT };
    private static final String[] ELEMENT_TYPE = { "Rectangle", "Cross", "Ellipse" };
    private static final int MAX_KERNEL_SIZE = 21;
    private Mat matImgSrc;
    private Mat matImgDst = new Mat();
    private int morphOpType = Imgproc.MORPH_OPEN;
    private int elementType = Imgproc.CV_SHAPE_RECT;
    private int kernelSize = 0;
    private JFrame frame;
    private JLabel imgLabel;


    public MorphologyDemo2(String[] args) {
        String imagePath = args.length > 0 ? args[0] : "../data/LinuxLogo.jpg";
        matImgSrc = Imgcodecs.imread(imagePath);
        if (matImgSrc.empty()) {
            System.out.println("Empty image: " + imagePath);
            System.exit(0);
        }


        // Create and set up the window.
        frame = new JFrame("Morphology Transformations demo");
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        // Set up the content pane.
        Image img = HighGui.toBufferedImage(matImgSrc);
        addComponentsToPane(frame.getContentPane(), img);
        // Use the content pane's default BorderLayout. No need for
        // setLayout(new BorderLayout());
        // Display the window.
        frame.pack();
        frame.setVisible(true);
    }


    private void addComponentsToPane(Container pane, Image img) {
        if (!(pane.getLayout() instanceof BorderLayout)) {
            pane.add(new JLabel("Container doesn't use BorderLayout!"));
            return;
        }


        JPanel sliderPanel = new JPanel();
        sliderPanel.setLayout(new BoxLayout(sliderPanel, BoxLayout.PAGE_AXIS));


        JComboBox<String> morphOpBox = new JComboBox<>(MORPH_OP);
        morphOpBox.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                @SuppressWarnings("unchecked")
                JComboBox<String> cb = (JComboBox<String>)e.getSource();
                morphOpType = MORPH_OP_TYPE[cb.getSelectedIndex()];
                update();
            }
        });
        sliderPanel.add(morphOpBox);


        JComboBox<String> elementTypeBox = new JComboBox<>(ELEMENT_TYPE);
        elementTypeBox.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                @SuppressWarnings("unchecked")
                JComboBox<String> cb = (JComboBox<String>)e.getSource();
                if (cb.getSelectedIndex() == 0) {
                    elementType = Imgproc.CV_SHAPE_RECT;
                } else if (cb.getSelectedIndex() == 1) {
                    elementType = Imgproc.CV_SHAPE_CROSS;
                } else if (cb.getSelectedIndex() == 2) {
                    elementType = Imgproc.CV_SHAPE_ELLIPSE;
                }
                update();
            }
        });
        sliderPanel.add(elementTypeBox);


        sliderPanel.add(new JLabel("Kernel size: 2n + 1"));
        JSlider slider = new JSlider(0, MAX_KERNEL_SIZE, 0);
        slider.setMajorTickSpacing(5);
        slider.setMinorTickSpacing(5);
        slider.setPaintTicks(true);
        slider.setPaintLabels(true);
        slider.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                JSlider source = (JSlider) e.getSource();
                kernelSize = source.getValue();
                update();
            }
        });
        sliderPanel.add(slider);


        pane.add(sliderPanel, BorderLayout.PAGE_START);
        imgLabel = new JLabel(new ImageIcon(img));
        pane.add(imgLabel, BorderLayout.CENTER);
    }


    private void update() {
        Mat element = Imgproc.getStructuringElement(elementType, new Size(2 * kernelSize + 1, 2 * kernelSize + 1),
                new Point(kernelSize, kernelSize));


        Imgproc.morphologyEx(matImgSrc, matImgDst, morphOpType, element);
        Image img = HighGui.toBufferedImage(matImgDst);
        imgLabel.setIcon(new ImageIcon(img));
        frame.repaint();
    }


    public static void main(String[] args) {
        // Load the native OpenCV library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);


        // Schedule a job for the event dispatch thread:
        // creating and showing this application's GUI.
        javax.swing.SwingUtilities.invokeLater(new Runnable() {
            @Override
            public void run() {
                new MorphologyDemo2(args);
            }
        });
    }
}

Python：

本教程的代码如下所示。你也可以从 这里 下载。

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse


morph_size = 0
max_operator = 4
max_elem = 3
max_kernel_size = 21
title_trackbar_operator_type = 'Operator:\n 0: Opening - 1: Closing  \n 2: Gradient - 3: Top Hat \n 4: Black Hat'
title_trackbar_element_type = 'Element:\n 0: Rect - 1: Cross - 2: Ellipse - 3: Diamond'
title_trackbar_kernel_size = 'Kernel size:\n 2n + 1'
title_window = 'Morphology Transformations Demo'
morph_op_dic = {0: cv.MORPH_OPEN, 1: cv.MORPH_CLOSE, 2: cv.MORPH_GRADIENT, 3: cv.MORPH_TOPHAT, 4: cv.MORPH_BLACKHAT}


def morphology_operations(val):
    morph_operator = cv.getTrackbarPos(title_trackbar_operator_type, title_window)
    morph_size = cv.getTrackbarPos(title_trackbar_kernel_size, title_window)
    morph_elem = 0
    val_type = cv.getTrackbarPos(title_trackbar_element_type, title_window)
    if val_type == 0:
        morph_elem = cv.MORPH_RECT
    elif val_type == 1:
        morph_elem = cv.MORPH_CROSS
    elif val_type == 2:
        morph_elem = cv.MORPH_ELLIPSE
    elif val_type == 3:
        morph_elem = cv.MORPH_DIAMOND


    element = cv.getStructuringElement(morph_elem, (2*morph_size + 1, 2*morph_size+1), (morph_size, morph_size))
    operation = morph_op_dic[morph_operator]
    dst = cv.morphologyEx(src, operation, element)
    cv.imshow(title_window, dst)


parser = argparse.ArgumentParser(description='Code for More Morphology Transformations tutorial.')
parser.add_argument('--input', help='Path to input image.', default='LinuxLogo.jpg')
args = parser.parse_args()


src = cv.imread(cv.samples.findFile(args.input))
if src is None:
    print('Could not open or find the image: ', args.input)
    exit(0)


cv.namedWindow(title_window)
cv.createTrackbar(title_trackbar_operator_type, title_window , 0, max_operator, morphology_operations)
cv.createTrackbar(title_trackbar_element_type, title_window , 0, max_elem, morphology_operations)
cv.createTrackbar(title_trackbar_kernel_size, title_window , 0, max_kernel_size, morphology_operations)


morphology_operations(0)
cv.waitKey()


说明

Section titled “说明”
  1. 我们先来看看 C++ 程序的整体结构：

    • 加载一幅图像；

    • 创建一个窗口，用于显示形态学操作的结果；

    • 创建三个 Trackbar，供用户输入参数：

      • 第一个 Trackbar Operator 返回要使用的形态学操作类型（morph_operator）：
      /// Create Trackbar to select Morphology operation
      createTrackbar("Operator:\n 0: Opening - 1: Closing  \n 2: Gradient - 3: Top Hat \n 4: Black Hat", window_name, &morph_operator, max_operator, Morphology_Operations );
      • 第二个 Trackbar Element 返回 morph_elem，表示核的结构类型：
      /// Create Trackbar to select kernel type
      createTrackbar( "Element:\n 0: Rect - 1: Cross - 2: Ellipse - 3: Diamond", window_name,
                      &morph_elem, max_elem,
                      Morphology_Operations );
      • 最后一个 Trackbar Kernel Size 返回要使用的核的大小（morph_size）：
      /// Create Trackbar to choose kernel size
      createTrackbar( "Kernel size:\n 2n +1", window_name,
                      &morph_size, max_kernel_size,
                      Morphology_Operations );

    • 每当我们移动任意滑块时，用户函数 Morphology_Operations 就会被调用，它会执行一次新的形态学操作，并根据当前 Trackbar 的值更新输出图像：

      /**
       * @function Morphology_Operations
       */
      void Morphology_Operations( int, void* )
      {
        // Since MORPH_X : 2,3,4,5 and 6
        int operation = morph_operator + 2;


        Mat element = getStructuringElement( morph_elem, Size( 2*morph_size + 1, 2*morph_size+1 ), Point( morph_size, morph_size ) );


        /// Apply the specified morphology operation
        morphologyEx( src, dst, operation, element );
        imshow( window_name, dst );
      }

      我们可以看到，执行形态学变换的关键函数是 cv::morphologyEx。在本例中我们使用了四个参数（其余保持默认值）：

      • src：源（输入）图像；

      • dst：输出图像；

      • operation：要执行的形态学变换类型。注意我们有 5 种选择：

        • Opening：MORPH_OPEN：2
        • Closing：MORPH_CLOSE：3
        • Gradient：MORPH_GRADIENT：4
        • Top Hat：MORPH_TOPHAT：5
        • Black Hat：MORPH_BLACKHAT：6

        如你所见，这些值的范围是 2~6，这就是为什么我们要给 Trackbar 输入的值加上（+2）：

        int operation = morph_operator + 2;

Morphology_2_Tutorial_Original_Image.jpg Morphology_2_Tutorial_Result.jpg

    - **element**：要使用的核。我们使用函数 cv::getStructuringElement 来定义自己的结构。

结果

Section titled “结果”

  • 编译上面的代码后，我们可以传入一幅图像的路径作为参数来运行它。使用图像 baboon.png 的结果如下：

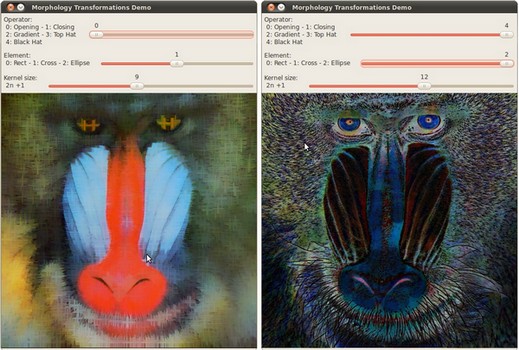

  • 下面是显示窗口的两张截图。第一张图展示了使用开运算（Opening）配合十字核的输出。第二张图展示了使用黑帽（Blackhat）算子配合椭圆核的结果。
