彩色点云配准

本教程演示一种同时利用几何信息和颜色信息进行配准的 ICP 变体，它实现了 [Park2017] 提出的算法。颜色信息能够在切平面（tangent plane）方向上锁定位移，因此该算法比此前的点云配准算法更精确、更鲁棒，同时运行速度与 ICP 配准相当。本教程沿用 ICP 配准中的记号约定。

辅助可视化函数

为了展示彩色点云之间的对齐效果，draw_registration_result_original_color 使用点云自身的原始颜色进行渲染。

def draw_registration_result_original_color(source, target, transformation):
    source_temp = copy.deepcopy(source)
    source_temp.transform(transformation)
    o3d.visualization.draw_geometries([source_temp, target],
                                      zoom=0.5,
                                      front=[-0.2458, -0.8088, 0.5342],
                                      lookat=[1.7745, 2.2305, 0.9787],
                                      up=[0.3109, -0.5878, -0.7468])

输入

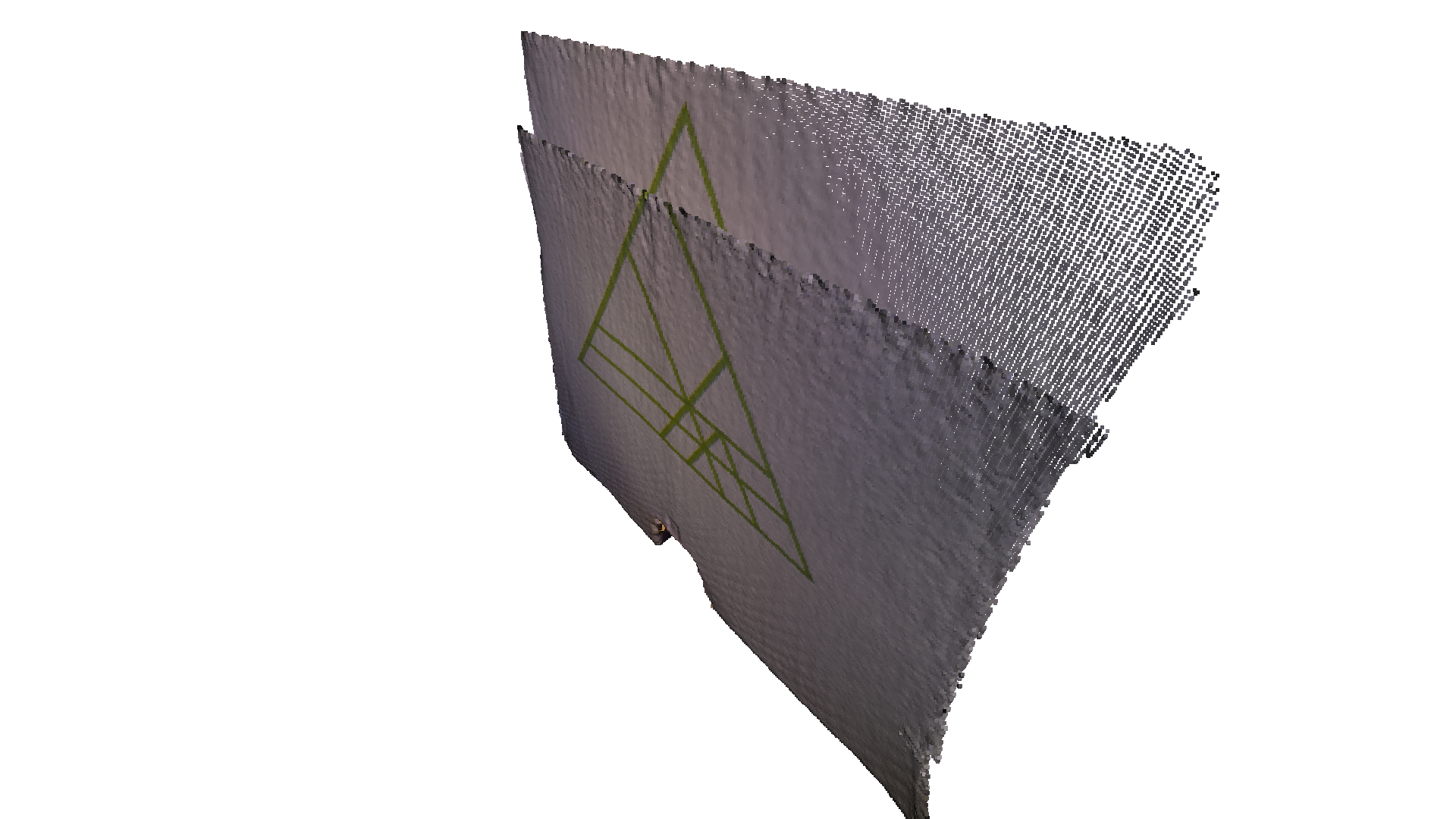

下面的代码从两个文件中分别读取源点云和目标点云，并使用单位矩阵作为配准的初始变换。

print("1. Load two point clouds and show initial pose")
demo_colored_icp_pcds = o3d.data.DemoColoredICPPointClouds()
source = o3d.io.read_point_cloud(demo_colored_icp_pcds.paths[0])
target = o3d.io.read_point_cloud(demo_colored_icp_pcds.paths[1])

# draw initial alignment
current_transformation = np.identity(4)
draw_registration_result_original_color(source, target, current_transformation)


输出：

1. Load two point clouds and show initial pose
[Open3D INFO] Downloading https://github.com/isl-org/open3d_downloads/releases/download/20220201-data/DemoColoredICPPointClouds.zip
[Open3D INFO] Downloaded to /home/runner/open3d_data/download/DemoColoredICPPointClouds/DemoColoredICPPointClouds.zip
[Open3D INFO] Created directory /home/runner/open3d_data/extract/DemoColoredICPPointClouds.
[Open3D INFO] Extracting /home/runner/open3d_data/download/DemoColoredICPPointClouds/DemoColoredICPPointClouds.zip.
[Open3D INFO] Extracted to /home/runner/open3d_data/extract/DemoColoredICPPointClouds.
[Open3D WARNING] GLFW Error: Failed to detect any supported platform
[Open3D WARNING] GLFW initialized for headless rendering.

Point-to-plane ICP

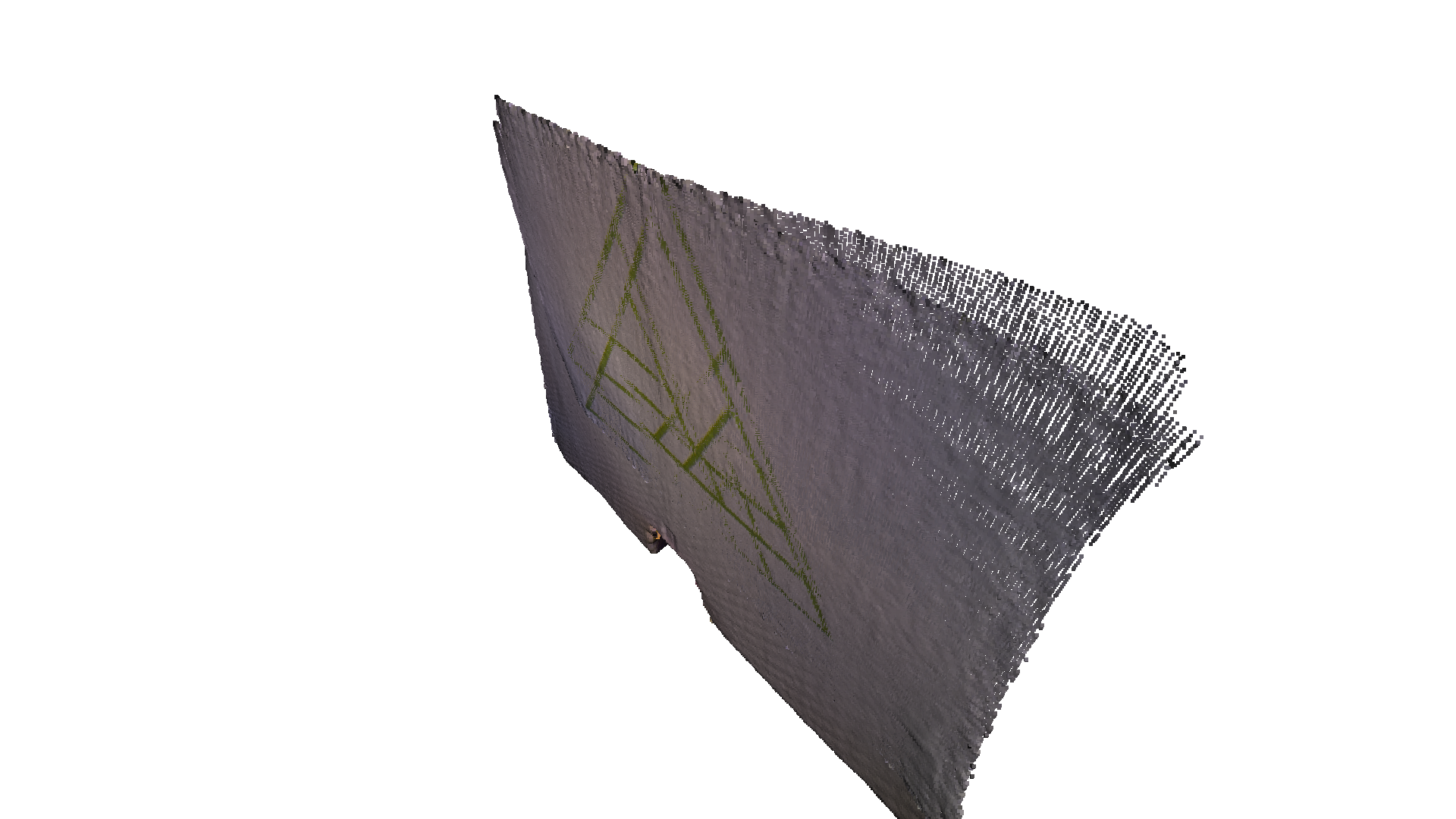

我们首先运行 Point-to-plane ICP 作为基线方法。下面的可视化展示了未能对齐的绿色三角形纹理。这是因为几何约束无法阻止两个平面之间发生滑动。

# point to plane ICP
current_transformation = np.identity(4)
print("2. Point-to-plane ICP registration is applied on original point")
print("   clouds to refine the alignment. Distance threshold 0.02.")
result_icp = o3d.pipelines.registration.registration_icp(
    source, target, 0.02, current_transformation,
    o3d.pipelines.registration.TransformationEstimationPointToPlane())
print(result_icp)
draw_registration_result_original_color(source, target,
                                        result_icp.transformation)


输出：

2. Point-to-plane ICP registration is applied on original point
   clouds to refine the alignment. Distance threshold 0.02.
RegistrationResult with fitness 0.1xxxx and correspondence_set size of 62729
Access transformation to get result.
[Open3D WARNING] GLFW initialized for headless rendering.

彩色点云配准

彩色点云配准的核心函数是 registration_colored_icp。按照 [Park2017] 的方法，它以联合优化目标运行 ICP 迭代（详见 Point-to-point ICP）：

E(\mathbf{T}) = (1-\delta)E_{C}(\mathbf{T}) + \delta E_{G}(\mathbf{T})

其中 $\mathbf{T}$ 是待估计的变换矩阵， $E_{C}$ 与 $E_{G}$ 分别是光度项（photometric term）与几何项（geometric term）， $\delta\in[0,1]$ 是一个由经验确定的权重参数。

几何项 $E_{G}$ 与 Point-to-plane ICP 的目标相同：

E_{G}(\mathbf{T}) = \sum_{(\mathbf{p},\mathbf{q})\in\mathcal{K}}\big((\mathbf{p} - \mathbf{T}\mathbf{q})\cdot\mathbf{n}_{\mathbf{p}}\big)^{2},

其中 $\mathcal{K}$ 是当前迭代中的对应关系集合， $\mathbf{n}_{\mathbf{p}}$ 是点 $\mathbf{p}$ 的法向量。

颜色项 $E_{C}$ 度量点 $\mathbf{q}$ 的颜色（记为 $C(\mathbf{q})$ ）与它在 $\mathbf{p}$ 的切平面上投影点的颜色之差：

E_{C}(\mathbf{T}) = \sum_{(\mathbf{p},\mathbf{q})\in\mathcal{K}}\big(C_{\mathbf{p}}(\mathbf{f}(\mathbf{T}\mathbf{q})) - C(\mathbf{q})\big)^{2},

其中 $C_{\mathbf{p}}(\cdot)$ 是在 $\mathbf{p}$ 的切平面上预先计算的连续函数， $\mathbf{f}(\cdot)$ 将一个三维点投影到切平面上。更多细节请参阅 [Park2017]。

为进一步提升效率，[Park2017] 提出了一种多尺度（multi-scale）配准方案。其实现见如下脚本。

# colored pointcloud registration
# This is implementation of following paper
# J. Park, Q.-Y. Zhou, V. Koltun,
# Colored Point Cloud Registration Revisited, ICCV 2017
voxel_radius = [0.04, 0.02, 0.01]
max_iter = [50, 30, 14]
current_transformation = np.identity(4)
print("3. Colored point cloud registration")
for scale in range(3):
    iter = max_iter[scale]
    radius = voxel_radius[scale]
    print([iter, radius, scale])

    print("3-1. Downsample with a voxel size %.2f" % radius)
    source_down = source.voxel_down_sample(radius)
    target_down = target.voxel_down_sample(radius)

    print("3-2. Estimate normal.")
    source_down.estimate_normals(
        o3d.geometry.KDTreeSearchParamHybrid(radius=radius * 2, max_nn=30))
    target_down.estimate_normals(
        o3d.geometry.KDTreeSearchParamHybrid(radius=radius * 2, max_nn=30))

    print("3-3. Applying colored point cloud registration")
    result_icp = o3d.pipelines.registration.registration_colored_icp(
        source_down, target_down, radius, current_transformation,
        o3d.pipelines.registration.TransformationEstimationForColoredICP(),
        o3d.pipelines.registration.ICPConvergenceCriteria(relative_fitness=1e-6,
                                                          relative_rmse=1e-6,
                                                          max_iteration=iter))
    current_transformation = result_icp.transformation
    print(result_icp)
draw_registration_result_original_color(source, target,
                                        result_icp.transformation)


输出：

3. Colored point cloud registration
[50, 0.04, 0]
3-1. Downsample with a voxel size 0.04
3-2. Estimate normal.
3-3. Applying colored point cloud registration
RegistrationResult with fitness 0.8xxxxx and correspondence_set size of 2084
Access transformation to get result.
[30, 0.02, 1]
3-1. Downsample with a voxel size 0.02
3-2. Estimate normal.
3-3. Applying colored point cloud registration
RegistrationResult with fitness 0.8xxxxx and correspondence_set size of 7541
Access transformation to get result.
[14, 0.01, 2]
3-1. Downsample with a voxel size 0.01
3-2. Estimate normal.
3-3. Applying colored point cloud registration
RegistrationResult with fitness 0.8xxxxx and correspondence_set size of 24737
Access transformation to get result.
[Open3D WARNING] GLFW initialized for headless rendering.

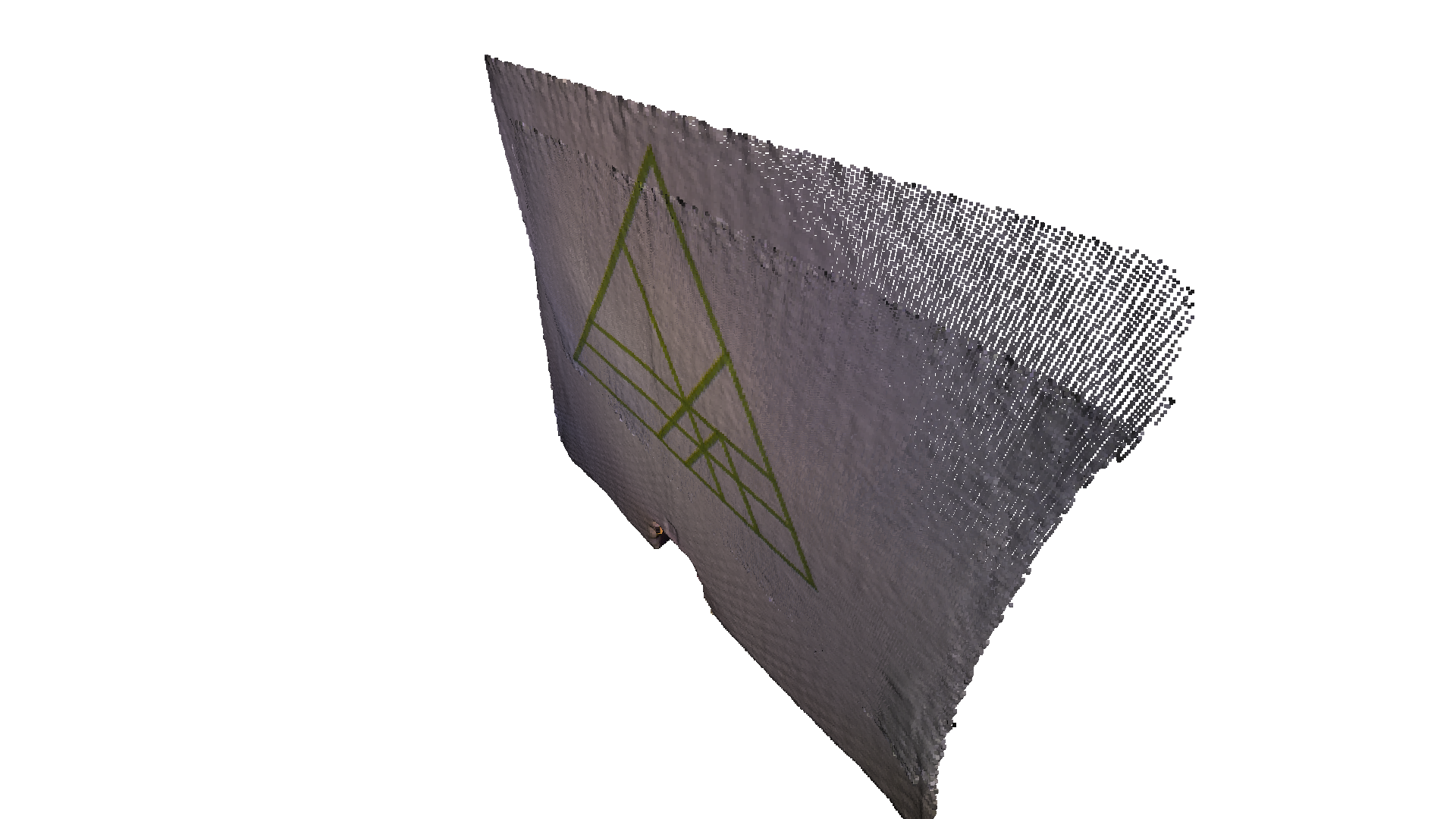

这里通过 voxel_down_sample 总共创建了 3 层多分辨率点云，并使用顶点法向量估计来计算法向量。核心配准函数 registration_colored_icp 从粗到细地在每一层上各调用一次。lambda_geometric 是 registration_colored_icp 的一个可选参数，用于确定整体能量 $\lambda E_{G} + (1-\lambda) E_{C}$ 中的 $\lambda \in [0, 1]$ 。

最终输出是两个点云之间的紧密对齐。注意墙上对齐良好的绿色三角形。
